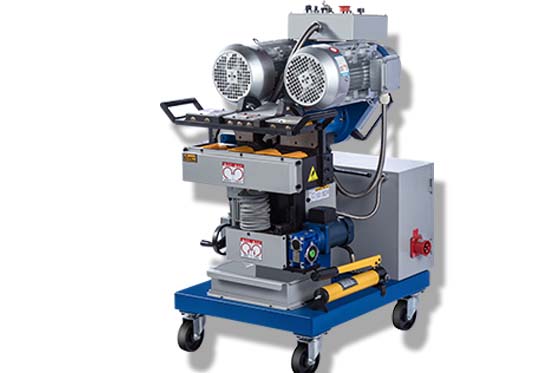

Auto plate edge milling machine, Auto plate beveling machine

GMMA-80A Edge milling machine technical parameters

Power Supply：AC 380V  50HZ

Total Power：4920W

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~80mm

Clamp Width：＞80mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：0°~60°Adjustable

Single Bevel Width：0~20mm（Change according to material and angle）

Bevel Width：0~70mm（Change according to bevel angle）

Cutter Plate：φ80 mm

Cutter Qty：8pcs

Worktable Height：700~760mm

Travel Space：800*800mm

Net Weight：245kg

Gross Weight：280kg

Package Size：800*690*1140mm

From: GIRET CNC edge milling machine and Beveling machine

Website: http://www.zygm.com.cn

Our Factory Provides:  CNC edge milling machine, HMI plate beveling machine, Table edge beveling machine, Plate bevelling machine, sheet bevelling machine, self-propelled bevelling machine, Stainless steel bevelling machine, Steel bevelling machine, Portable groove machine, handheld groove machine, portable groove machine, portable edge milling machine, Portable plate bevelling machine, Portable edge shearing machine, sheet beveling machine, plate welding grooves machine.
